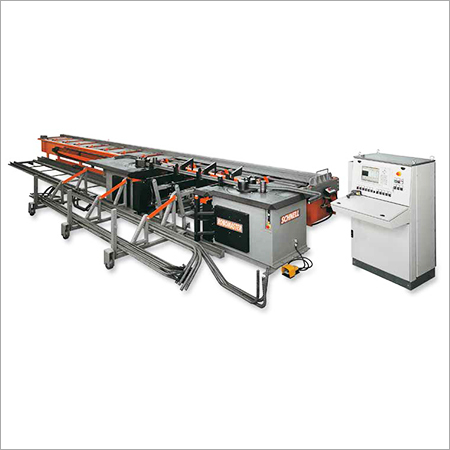

Automatic Stirrup Bender Machine Installation

Automatic Stirrup Bender Machine Installation
Automatic Stirrup Bender Machine Installation
Service Code : Bar Wiser 22 N
Brand Name : SCHNELL

Bi-directional automatic stirrup bender, allows to produce stirrups both from bars (up to Ø22 mm - #7) and from coils (up to Ø16 mm - #5).  Driven by electric servomotors.

  • Max. pulling speed: 100 m/min (328 ft/min)
  • External and internal straightening unit
  • Pneumatic pressure on traction wheels
  • Virtual mandrel
  • Web Tele assistance.
BAR WISER 22 N
1 bar up to: 8 ÷ 22 mm #3 ÷ #7
2 bars up to: 8 ÷ 16 mm #3 ÷ #5
3 bars up to: 8 ÷ 10 mm #3
Max bending angle: 180° 180°
Central mandrels Ø: 32 ÷ 100 mm 1-2/8" ÷ 4-6/8"
Max pulling speed: 120 m/min 400 ft/min
Max bending speed: 840°/sec 840°/sec
Average power consumption: 2 kW/h 2 kW/h
Working pressure: 7 bar 90/100 psi
