Multi Assembler Machine Installation

Multi Assembler Machine Installation
Multi Assembler Machine Installation
Service Code : AMM 11
Brand Name : SCHNELL

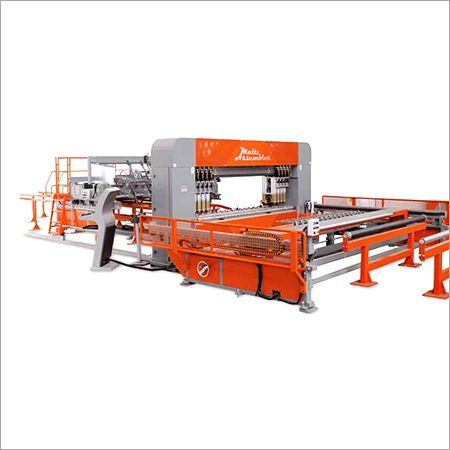

Mesh welding machine for the production of reinforcing mesh, engineeredspecialheavy and 3D (bent, precast) mesh working with pre-cut wires or bars up to Ø25 mm (#8)

This mesh welding line is ideal for the production of both light (Ø5xØ5 mm) and heavy meshes (Ø20xØ20 mm). Driven by digital electric servomotors.

- Highly flexible
- Mobile automatic welding heads
- Cold-rolled wire, plain or ribbed, or hot-rolled ribbed wire can be used
- Production of meshes with big size (up to 4m of width)
- Production of meshes with bent bars
- Possible upgrade with automatic feeding group for cross wires, line wires and automatic mesh panels stacker
- Web Teleassistance

MULTI ASSEMBLERMesh panel widths:3000 mm4000 mm10'13'Mesh panel lengths:up to 6 m  up to 20'(up to 12 m on request)(up to 40' on request)Line wire pitch (min):75 mm 3"  (50 mm on request) (2" on request)Cross wire pitch (min):20 mm 6/8"Wire diameters:25 mm with 16 mm #8 with #520 mm with 20 mm #6 with #6
